SKU:31424121

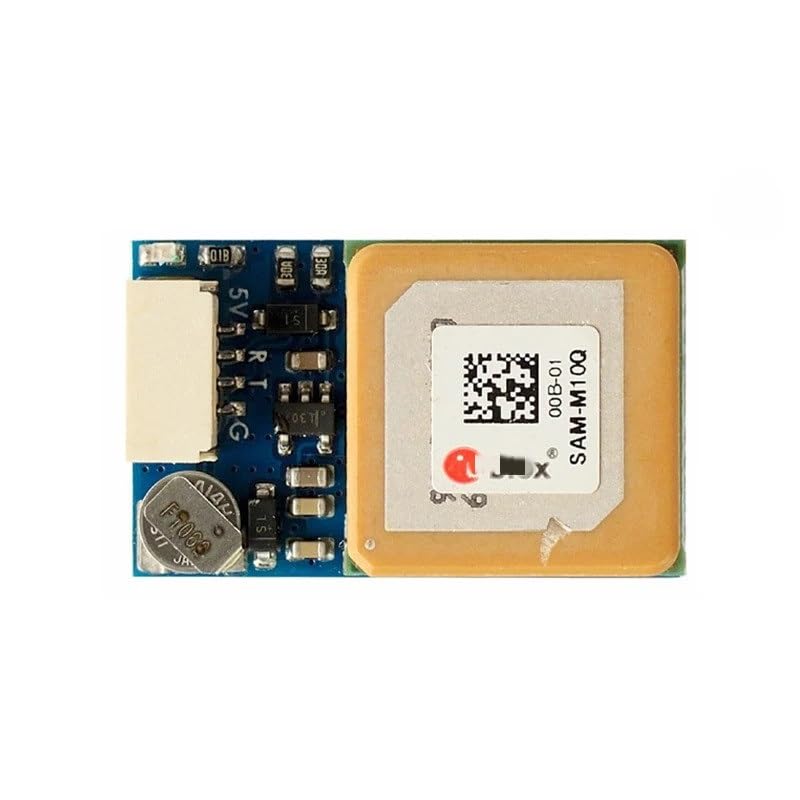

Item: GNSS, SAM-M10Q Specifications:GNSS For u b x SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)No Magnetic Compass built-inPatch antenna 15*15*4mmInput voltage range: 4~9V (5V pad/pin)Power consumption: 10mAUART baudrate: 9600 defaultOperating Temperatures: -20~80 °CFor UART(TX, RX) interface for GNSS SAM-M10Q-00BFor JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitchGNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)Protocol: For U B X( For u-b lox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz26mm*16mm*8mm7.5gIncludes:1x SAM-M10Q1x For JST-GH-4P to For JST-GH-4P 20cm silicon wireWiring and settings:SAM-M10Q 5V to Flight controller 4~9VSAM-M10Q RX to Flight controller UART_TXSAM-M10Q TX to Flight controller UART_RXSAM-M10Q G to Flight controller GNDM10Q-5883 SpecificationsGNSS For u b x SAM-M10Q (For GPS, For GLONASS, For Galileo and For BeiDou)Magnetic Compass QMC5883LPatch antenna 15*15*4mmInput voltage range: 4~9V (5V pad/pin)Power consumption: 13mAFor UART baudrate: 9600 defaultOperating Temperatures: -20~80 °CFor UART(For TX, For RX) interface for GNSS SAM-M10Q-00BI2C(DA, CL) interface for Compass QMC5883LFor JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitchGNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)Protocol: For U B X5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz20mm*20mm*12.4mm8gM10Q-5883_step.zipIncludes1x M10Q-58831x For JST-GH-6P to for JST-GH-6P 20cm silicon wireWiring and settingsM10Q-5883 5V to Flight controller 4~9VM10Q-5883 RX to Flight controller UART_TXM10Q-5883 TX to Flight controller UART_RXM10Q-5883 CL to Flight controller I2C_SCLM10Q-5883 DA to Flight controller I2C_SDAM10Q-5883 G to Flight controller GNDTips and NotesCompass

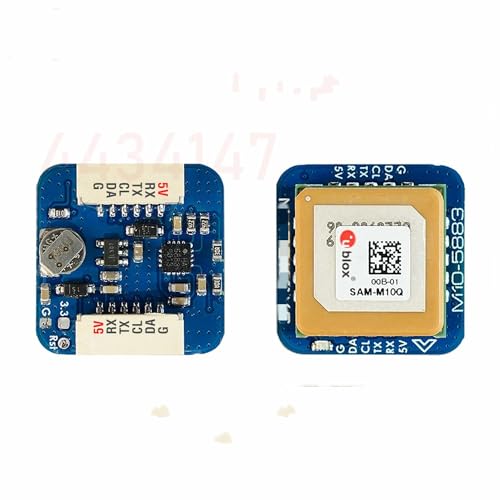

1. For M10Q-5883 uses multi-constellation GNSS module powered by for u b x SAM-M10Q-00B.
2. For SAM-M10Q features for u b x M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals.
3. For SAM-M10Q supports concurrent reception of four GNSS (GPS, For GLONASS, For Galileo, and For BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons.
4. For u b x Super-S (Super-Signal) technology offers great RF sensitivity and = can improve the dynamic position accuracy in non-line-of-sight scenarios.
5. The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.
